NDD-8 230V, 1ph, 50/60Hz
HVC-NDD-8-1ph
NDD Dual-stage Rotary Vane Pump
Corrosion-Resistant · No Oil Leakage
Highly reliable for harsh environment
Very low noise
Corrosion-Resistant Design: Corrosion resistance treatments on the pump body; Stainless steel springs and Fluorine rubber sealing rings.
No Oil Leakage: Converting dynamic seals (oil seals) to static seals.
Brushless DC Technology: Low noise. Energy-saving.
Anti Suck Back Design: Protecting vacuum system from oil contamination during an unexpected shutdown.
Integrated Design: Less spare parts. Easy to repair and maintain.
Oil Drainage Ball valve: Ensuring easy oil drainage.

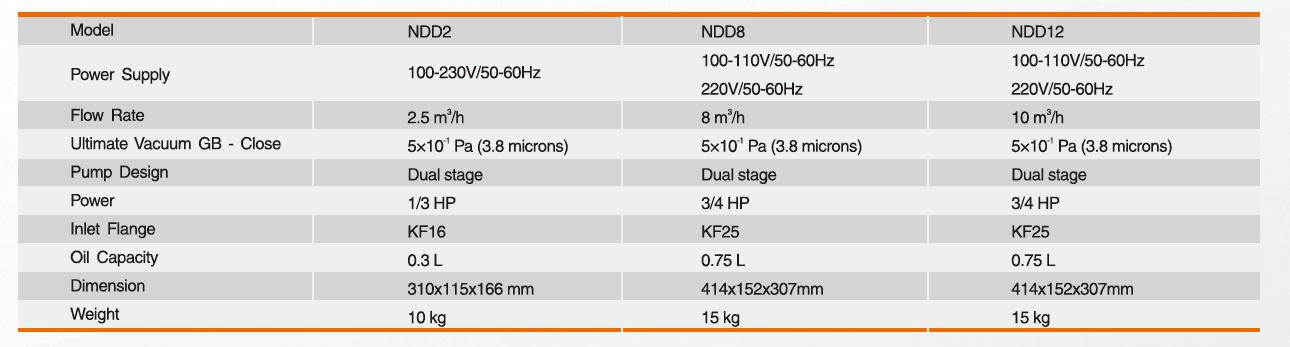

- Pump Model
- NDD-8
- Voltage & Phases
- 100-230V, 1ph, 50/60Hz
- Pumping Speed
- 8 m³/h
- Final Pressure
- 5 · 10-3 mbar
NDD Dual-stage Rotary Vane Pump
Corrosion-Resistant · No Oil Leakage
Highly reliable for harsh environment
Very low noise
Corrosion-Resistant Design: Corrosion resistance treatments on the pump body; Stainless steel springs and Fluorine rubber sealing rings.
No Oil Leakage: Converting dynamic seals (oil seals) to static seals.
Brushless DC Technology: Low noise. Energy-saving.
Anti Suck Back Design: Protecting vacuum system from oil contamination during an unexpected shutdown.
Integrated Design: Less spare parts. Easy to repair and maintain.
Oil Drainage Ball valve: Ensuring easy oil drainage.
