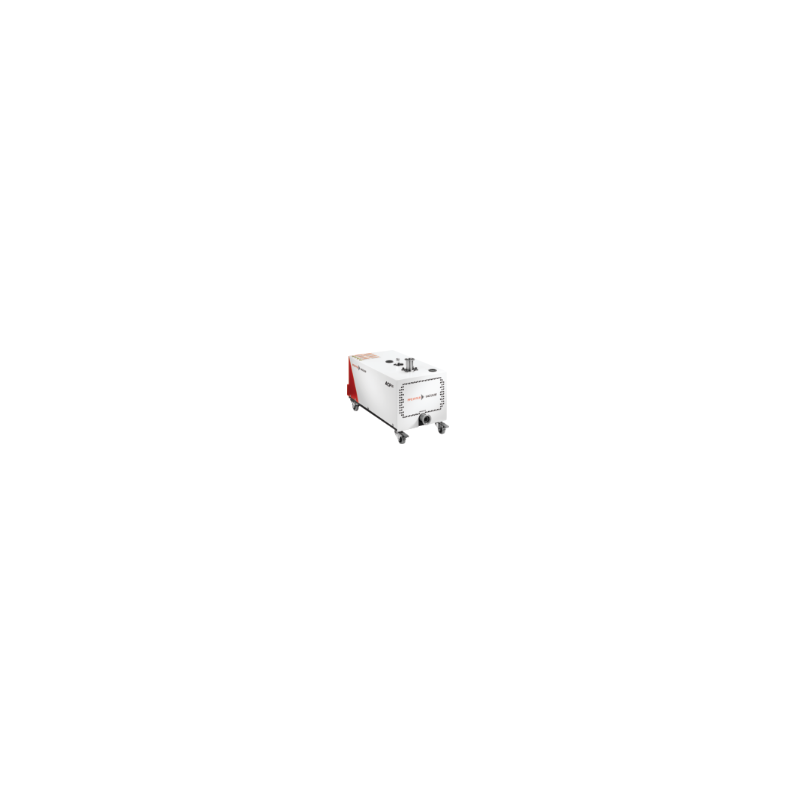

Pfeiffer ACP 90 G, three phase, purge port R 1/4"
HVC-V9GABSBZRR01
- Dry multi-stage Roots technology, G versions, ACP pumps with a pumping speed of max. 90 m3/h. High pumping speed at high pressure.
- No particle contamination, thanks to frictionless design: no wearing parts in the pumped gases path
- No hydrocarbon vapors backstreaming: ACP series pumps are free of lubricant inside the pumping module
- Constant performances (Pumping speed, max. and ultimate pressure)
- Low maintenance cost. No annual maintenance. Maintenance of low pressure bearings can be done on-site
- Thanks to specific high qualiy materials the pump is compatible with traces of corrosive gases. A purge gas stream dilutes the corrosive media and provides bearings protection
- Pump Model
- ACP 90 G
- Voltage & Phases
- 200-240 VAC, 50/60HZ 3-Ø
- Pumping Speed
- 90 m³/h
- Final Pressure
- 3 · 10-2 hPa
