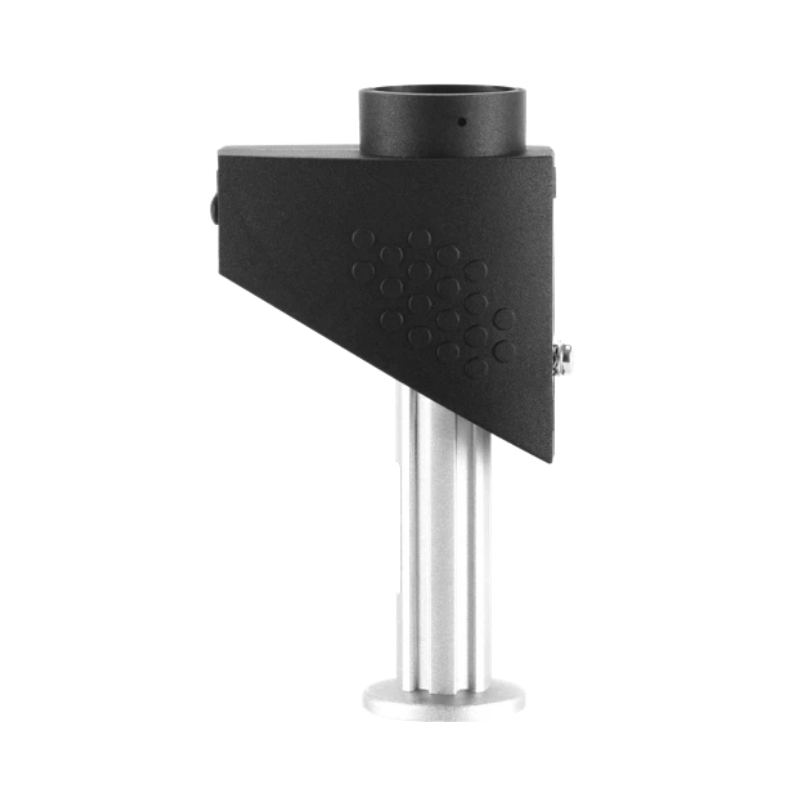

Edwards Pirani gauge PRG20K - NW16 Al
HVC-D03000200
Pirani gauge PRG20K - NW16 Al
The Edwards range of passive gauges comprises of Pirani, Penning and both Bayard-Alpert and Extractor Ion gauge heads which together can measure from atmosphere down to 10-12 mbar. These are used in conjunction with a Passive gauge controller (PGC) to display pressure and offer an intuitive interface for the user alongside the ability to control remotely. Edwards will offer 2 controller variants; the PGC201 which covers the Pressure range of 10-9 to 1000 mbar, in conjunction with Pirani and Penning gauges, and the PGC202 which covers the wider range of and 10-12 to 1000 mbar when used with a Pirani and Ion gauge.
Technical Data
| Units | PRG20K - NW16 | PRG20K - DN16CF | PRG20KCR - NW16 | |
| Measurement range | mbar(Torr) | 5 x 10-4 to 1000 (3.8 x 10-4 to 750) | 5 x 10-4 to 1000 (3.8 x 10-4 to 750) | 5 x 10-4 to 1000 (3.8 x 10-4 to 750) |
| Operating temperature range (compensated) | °C | 0 to +40 | 0 to +40 | 0 to +40 |
| Maximum ambient temperature | °C | 80 | 80 | 80 |
| Filament | Tungsten | Tungsten | Platinum | |
| Filament temperature | °C | 110 | 110 | 110 |
| Permissible overload (abs.), max. | bar | 3 | 10 | 10 |
| Volume of the sensing cell, approx. | cm3 | 11 | 11 | 11 |
| Vacuum connection | NW16 | DN16CF | NW16 | |
| Materials in contact with the medium | Aluminum, Vacon, Glass, Tungsten, CrNi 8020 Nickel plated steel, epoxy adhesive | Stainless steel, Vacon, Tungsten, CrNi 8020 ceramics, Al2O3, NiFe 42 | Stainless steel 1.4301 (SS 304), Al2O3, CrNi 8020, Platinum | |
| Compatible controllers | PGC201/PGC202 | PGC201/PGC202 | PGC201/PGC202 |
Dimensions
PRG20K-NW16 AI
- Aluminum sensing cell with tungsten filament
- Improved temperature compensation
PRG20K–DN16CF SS
- Stainless steel sensing cell with tungsten filament
- Overpressure resistant
PRG20KCR–NW16 SS
- Stainless steel sensing cell with platinum filament and ceramics feed through
- Well suited for corrosive processes and water vapour atmospheres
- Type
- Pirani Gauge
- Measuring range
- 5 · 10-4 – 1000 hPa
- Gauge model
- PRG20K
- Flange
- DN 16 ISO-KF
