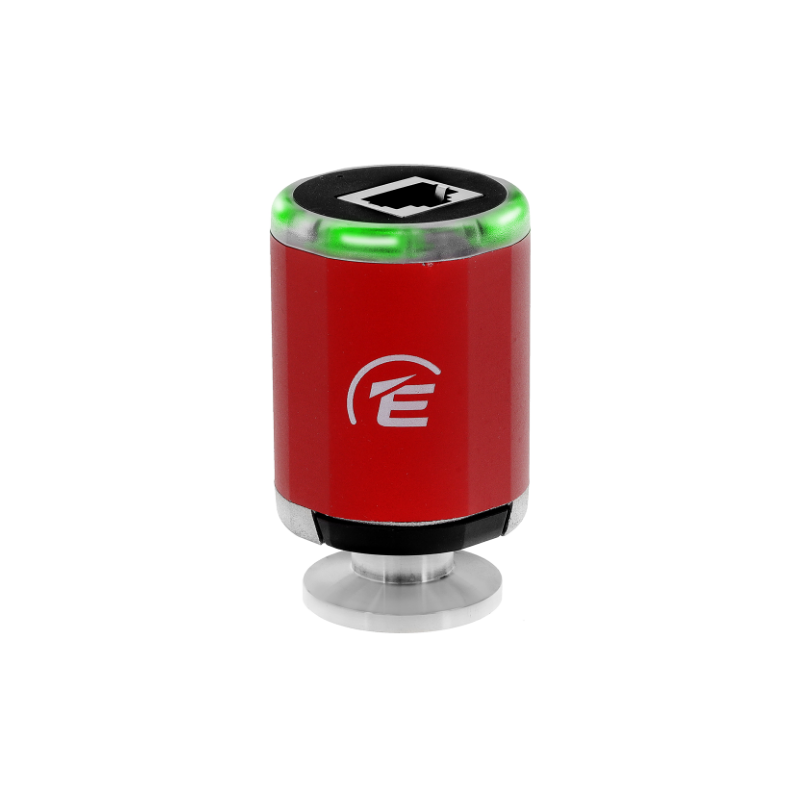

    Edwards nAPG200 - XLC-RS485-NW16-9 Pin DSUB (replaces D02691000)

    HVC-D1G2010200

    nAPG200 - XLC-RS485-NW16-9 Pin DSUB

    Features and Benefits

    - Compact size with all interfaces in the same orientation for ease of access

    - Sensor tube can be baked to 150 oC

    - Adjustable set-point relays for simple process control and interlocking

    - Bright Light ring with local pressure band display

    - NW16, NW25 and DN16CF and more flange options for easy connection to vacuum systems

    - Digital and analogue variants in the same footprint

    Price on request

    Request quote

    Technical Data

    APG200 M seriesAPG200 LC seriesAPG200 MP series
    Measurement rangeatmosphere to 5e-4 mbar (atmosphere to 3.75e-4 torr)atmosphere to 1e-4 mbar (atmosphere to 7.5e-5 torr)atmosphere to 5e-4 mbar (atmosphere to 3.75e-4 torr)
    AccuracyAtmosphere to 100 +-50%100 to 10 +-50%Atmosphere to 100 +-50%
    100 to 1e-3 +-15%10 to 1e-3 +-15%100 to 1e-3 +-15%
    1e-3 to 5e-4 +-50%1e-3 to 5e-4 +-50%1e-3 to 5e-4 +-50%
    Repeatability
    Supply voltage15 to 48 V d.c.15 to 48 V d.c.15 to 48 V d.c.
    Electrical connectionRJ45/9 Pin D-subRJ45/9 Pin D-subRJ45/9 Pin D-sub
    Analogue output (D1G***1***)0-10V0-10V0-10V
    Serial output (D1G***5***/D1G***0***)RS232 ot RS485RS232 ot RS485RS232 ot RS485
    Set point0, 1, or 2 depending on model0, 1, or 2 depending on model0, 1, or 2 depending on model
    Range1.8-9.2V1.8-9.2V1.8-9.2V
    Relay contact rating48V dc max, 500mA48V dc max, 500mA48V dc max, 500mA
    Status indictors360 Bright LED ring360 Bright LED ring360 Bright LED ring
    Max cable length100100100
    Over pressure limit101010
    Operating temp range5 to 60 °C5 to 60 °C5 to 60 °C
    Storage Temp-30 to 70 °C-30 to 70°C-30 to 70 °C
    Max bake out (electronics removed)150150150
    Max relative humidity80% RH up to 31 °C  decreasing linearly to 50% RH at 40 °C and above80% RH up to 31 °C  decreasing linearly to 50% RH at 40 °C and above80% RH up to 31 °C  decreasing linearly to 50% RH at 40 °C and above
    Materials exposed to vacuumTungsten/Rhenium, Stainless steel 316L and 304L, Glass, Ni, NiFe, Stainless steel 302S26Platinum/Rhodium, Stainless steel 316L and 304L, Glass, Ni, NiFe, Stainless steel 302S26Platinum/Iridium, Stainless steel 316L and 304L, Glass, Ni, NiFe, Stainless steel 302S26, PTFE
    Dead Volume3.3 CM^33.3 CM^33.3 CM^3
    Weight (16isoKF)130 grams130 grams130 grams
    Protection class404040
    CertificationsCE, UKCACE, UKCACE, UKCA
    Compatible ControllersTIC/ADC/TAGTIC/ADC/TAGTIC/ADC/TAG
    Type
    Pirani Gauge
    Measuring range
    1 · 10-4 – 1 · 10³ hPa
    Gauge model
    nAPG200 XLC
    Electrical connection
    RS485
    Replacement for
    D02691000
    Flange
    DN 16 ISO-KF
