Edwards ADC mkII Enhanced
HVC-D39591500

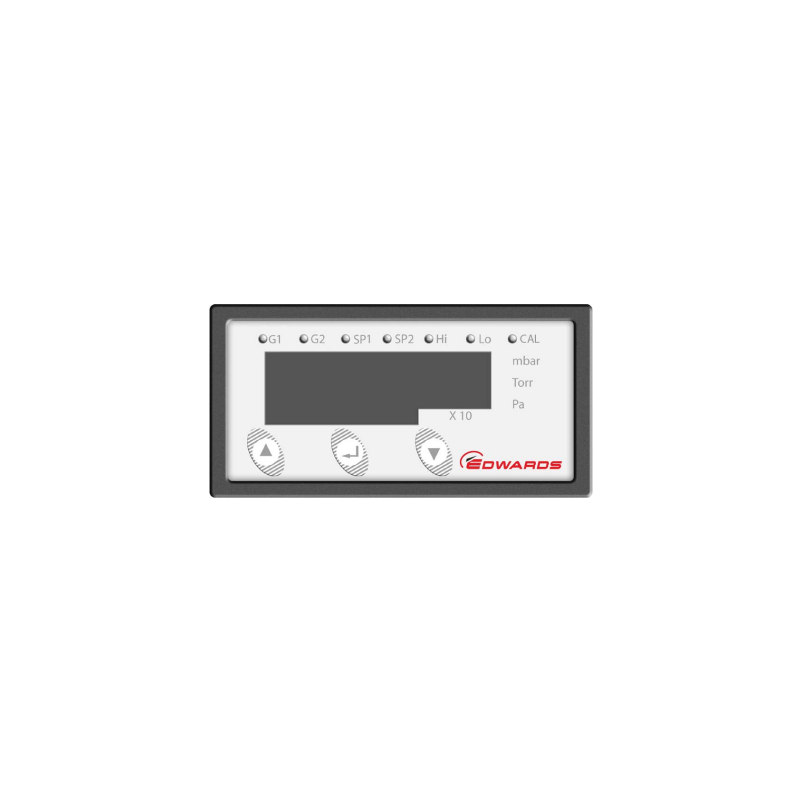

The Edwards Active Digital Controller (ADC) is a compact single gauge controller and display. It features a LED display and simple push-button controls. It automatically recognizes compatible Edwards gauges, loads the appropriate look-up table and displays the pressure in commonly used vacuum units.
The enhanced controller supports two gauges - it has two variable hysteresis set-points which are linked to 48 V d.c. 1 A changeover relays and two 0-10 V d.c. analog outputs. To aid system integration, the enhanced controller is provided with an RS232 interface. When combined with a suitable gauge, such as the Edwards APGXH Convection Pirani or Wide Range Gauge (WRG), the ADC represents a cost effective means of monitoring and controlling process vacuum in a broad range of applications.
- Type
- ADC mkII Enhanced
- Channel(s)
- 2
The Edwards Active Digital Controller (ADC) is a compact single gauge controller and display. It features a LED display and simple push-button controls. It automatically recognizes compatible Edwards gauges, loads the appropriate look-up table and displays the pressure in commonly used vacuum units.
The enhanced controller supports two gauges - it has two variable hysteresis set-points which are linked to 48 V d.c. 1 A changeover relays and two 0-10 V d.c. analog outputs. To aid system integration, the enhanced controller is provided with an RS232 interface. When combined with a suitable gauge, such as the Edwards APGXH Convection Pirani or Wide Range Gauge (WRG), the ADC represents a cost effective means of monitoring and controlling process vacuum in a broad range of applications.
