Uncompromising chemical resistance
VACUUBRAND chemistry diaphragm pumps are uncompromisingly chemically resistant – even in the case of aggressive chemicals. All wetted parts are made of selected fluoroplastics. They are characterized by excellent chemical resistance and low material adhesion.
| Code | Pump Model | Voltage & Phases | Pumping Speed | Final Pressure | Inlet connection | Outlet connection | Price ex. | Stock | Qty | More info | |
|---|---|---|---|---|---|---|---|---|---|---|---|

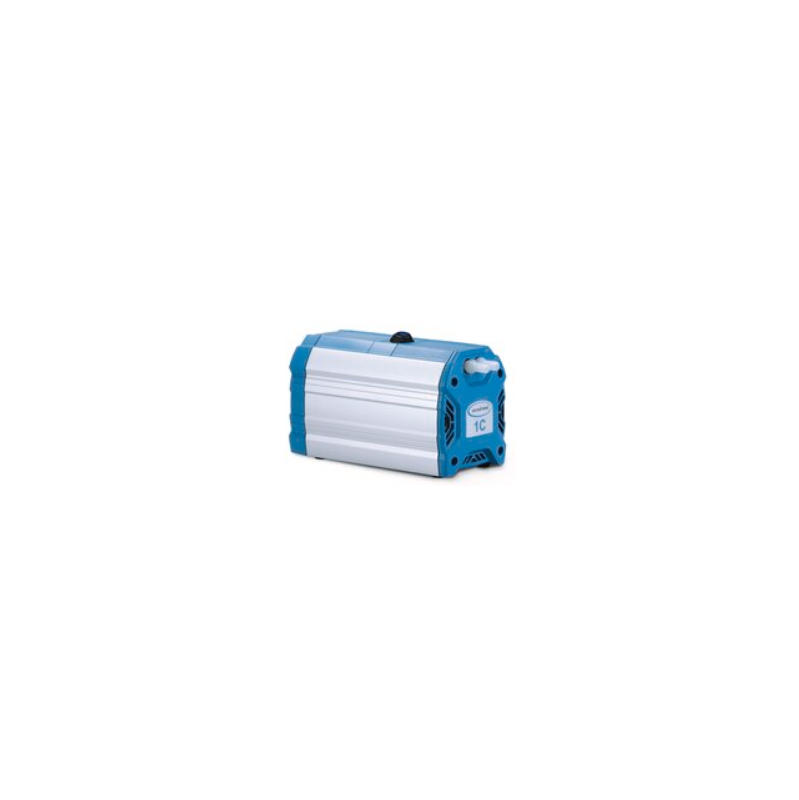

| HVC-20721100 | ME 1C | 220-230 VAC 50-60 HZ 1-Ø | 0.7/0.8 m³/h | 100 mbar | Hose nozzle DN 8-10 mm | Hose nozzle DN 8-10 mm | On request | More info | |||
| HVC-20730100 | ME 2C NT | 220-230 VAC 50-60 HZ 1-Ø | 2.1/2.4 m³/h | 70 mbar | Hose nozzle DN 8-10 mm | Hose nozzle DN 8-10 mm | On request | More info | |||
| HVC-20731200 | ME 4C NT | 220-230 VAC 50-60 HZ 1-Ø | 3.9/4.3 m³/h | 70 mbar | Hose nozzle DN 8-10 mm | Hose nozzle DN 8-10 mm | On request | More info | |||
| HVC-20734200 | ME 8C NT | 220-230 VAC 50-60 HZ 1-Ø | 7.1/7.8 m³/h | 70 mbar | Hose nozzle DN 8-10 mm | Hose nozzle DN 8-10 mm | On request | More info | |||
| HVC-20741300 | ME 16C NT | 220-230 VAC 50-60 HZ 1-Ø | 16.3/18.4 m³/h | 70 mbar | small flange KF DN 25 | Hose nozzle DN 15 mm | On request | More info | |||
| HVC-20724100 | MZ 1C | 220-230 VAC 50-60 HZ 1-Ø | 0.75/0.9 m³/h | 12 mbar | Hose nozzle DN 8-10 mm | Hose nozzle DN 8-10 mm | On request | More info | |||
| HVC-20732300 | MZ 2C NT | 220-230 VAC 50-60 HZ 1-Ø | 2.0/2.3 m³/h | 12 mbar | Hose nozzle DN 8-10 mm | Hose nozzle DN 8-10 mm | On request | More info | |||
| HVC-20696600 | MD 1C | 220-230 VAC 50-60 HZ 1-Ø | 1.3/1.5 m³/h | 2 mbar | Hose nozzle DN 8-10 mm | Hose nozzle DN 8 mm | On request | More info | |||
| HVC-20736400 | MD 4C NT | 220-230 VAC 50-60 HZ 1-Ø | 3.4/3.8 m³/h | 1.5 mbar | Hose nozzle DN 8-10 mm | Hose nozzle DN 8-10 mm | On request | More info | |||
| HVC-20736445 | MD 4CRL NT | 220-230 VAC 50-60 HZ 1-Ø | 3.4/3.8 m³/h | 1.5 mbar | small flange KF DN 16 | small flange KF DN 16 | On request | More info | |||
| HVC-20743300 | MD 12C NT | 220-230 VAC 50-60 HZ 1-Ø | 12.0/13.3 m³/h | 2 mbar | small flange KF DN 25 | Hose nozzle DN 15 mm | On request | More info | |||
| HVC-20744300 | MV 10C NT | 220-230 VAC 50-60 HZ 1-Ø | 9.5/10.7 m³/h | 1.5 mbar | small flange KF DN 25 | Hose nozzle DN 15 mm | On request | More info |
= In stock
= Out of stock
= Out of stock
