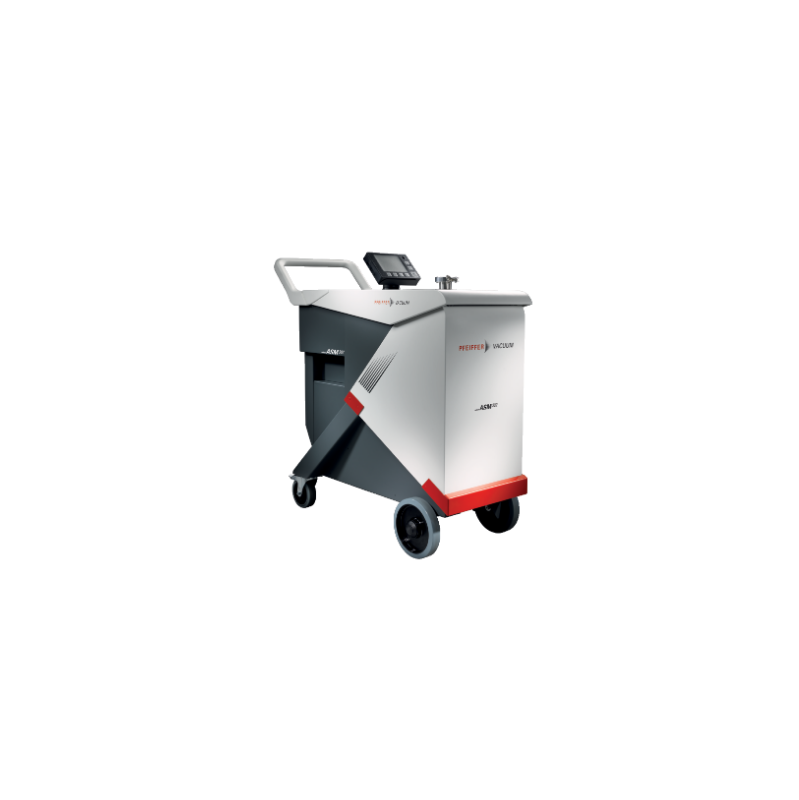

ASM 390

The ASM 390 is optimized for fast and accurate leak testing in all measurement ranges. It is the perfect combination of high dry pumping performance, sensitivity and mobility in the smallest footprint.

• 35 m3/h (21 cfm) roughing capacity using frictionless and oil free ACP pump
• 10 l/s helium pumping speed for a faster response time
• 20 hPa crossover pressure for a rapid entry into measurement mode and additional massive mode for large leaks
• Color touch panel display with full 360° viewing offering excellent visibility
• Intuitive menu with password protection to prevent from unintended use
• Available with interface board for automation through an external system (PC or PLC)

ASM 392

The ASM 392 provides unrivalled performances with high sensitivity and accuracy. Sharing the same platform as the ASM 390 and equipped with an additional turbopump, the ASM 392 will speed up your leak detection process, without any compromise on footprint and maneuverability.

• 35 m3/h (21 cfm) roughing capacity using frictionless and oil free ACP pump
• 25 l/s helium pumping speed to shorten the time to test
• 20 hPa crossover pressure for a rapid entry into measurement mode and additional massive mode for large leaks
• Color touch panel display with full 360° viewing offering excellent visibility
• Intuitive menu with password protection to prevent from unintended use
• Available with interface board for automation through an external system (PC or PLC)
