Code | Pump Model | Voltage & Phases | Pumping Speed | Final Pressure | Material | A (mm) | B (mm) | C (mm) | D (mm) | n-d | PCD (mm) | Type | Flange | Price ex. | PDF | Qty | More info |
---|

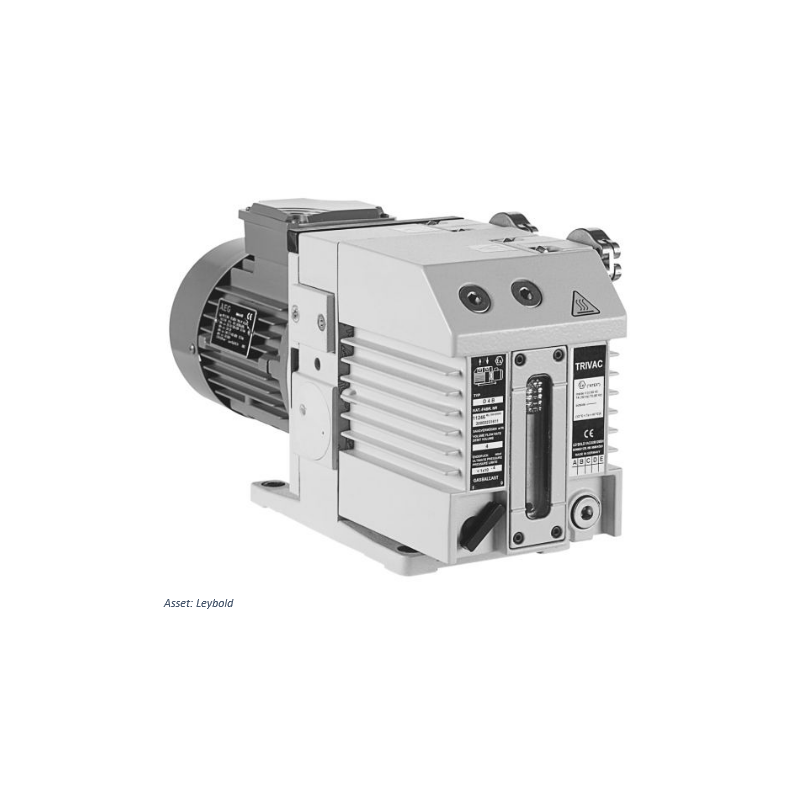

HVC-11245 | D4b | 220 VAC, 50Hz 1-Ø | 4.2 m³/h | 2 · 10-3 hPa | | | | | | | | | | On request | | | More info |
HVC-140081 | D4b | 100/230 VAC, 50Hz 1-Ø | 4.2 m³/h | 2 · 10-3 hPa | | | | | | | | | | On request | | | More info |
HVC-11246 | D4b | 230/400 VAC, 50/60Hz 3-Ø | 4.2 m³/h | 2 · 10-3 hPa | | | | | | | | | | On request | | | More info |
HVC-11255 | D8b | 230 VAC, 50Hz 1-Ø | 8.5 m³/h | 2 · 10-3 hPa | | | | | | | | | | On request | | | More info |
HVC-140082 | D8b | 100/230 VAC, 50Hz 1-Ø | 8.5 m³/h | 2 · 10-3 hPa | | | | | | | | | | On request | | | More info |
HVC-11256 | D8b | 230/400 VAC, 50/60Hz 3-Ø | 8.5 m³/h | 2 · 10-3 hPa | | | | | | | | | | On request | | | More info |
HVC-11265 | D16b | 230 VAC, 50Hz 1-Ø | 16.5 m³/h | 2 · 10-3 hPa | | | | | | | | | | On request | | | More info |
HVC-11266 | D16b | 230/400 VAC, 50/60Hz 3-Ø | 16.5 m³/h | 2 · 10-3 hPa | | | | | | | | | | On request | | | More info |
HVC-11275 | D25b | 230 VAC, 50Hz 1-Ø | 25.7 m³/h | 2 · 10-3 hPa | | | | | | | | | | On request | | | More info |
HVC-11276 | D25b | 230/400 VAC, 50/60Hz 3-Ø | 25.7 m³/h | 2 · 10-3 hPa | | | | | | | | | | On request | | | More info |
HVC-11286 | D40b | 230/400 VAC, 50/60Hz 3-Ø | 40 m³/h | 2 · 10-3 hPa | | | | | | | | | | On request | | | More info |
HVC-11296 | D65b | 230/400 VAC, 50/60Hz 3-Ø | 65 m³/h | 2 · 10-3 hPa | | | | | | | | | | On request | | | More info |
HVC-CF100BOF | | | | | SS 304 | 152.4 | 101.85 | 98.42 | 19.9 | 16-8.43 | 130.25 | Through Holes | DN100-CF | € 69.00 | | | More info |
